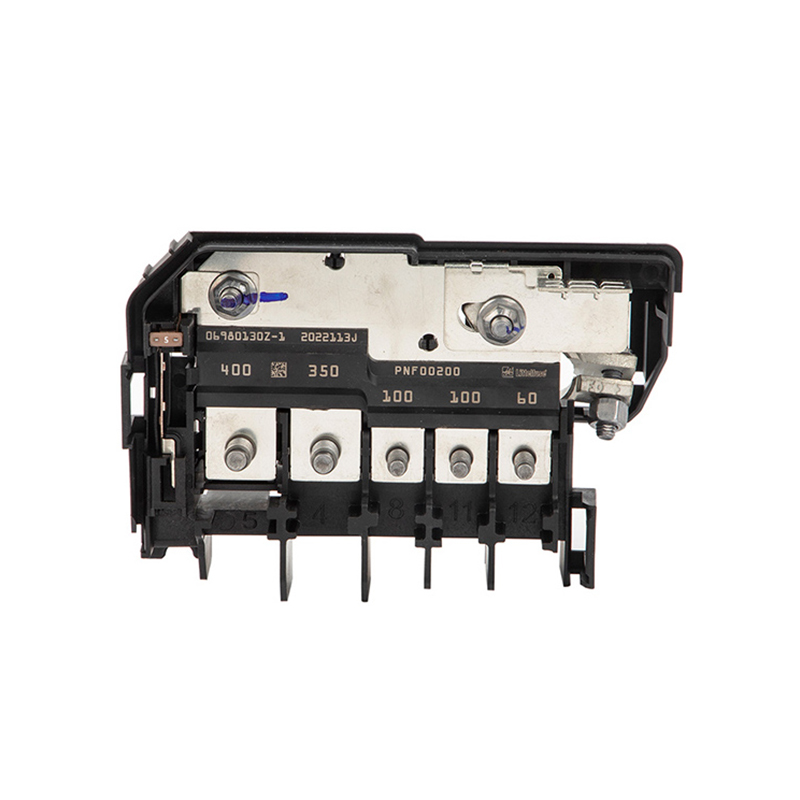

Low voltage BDU，.jpg

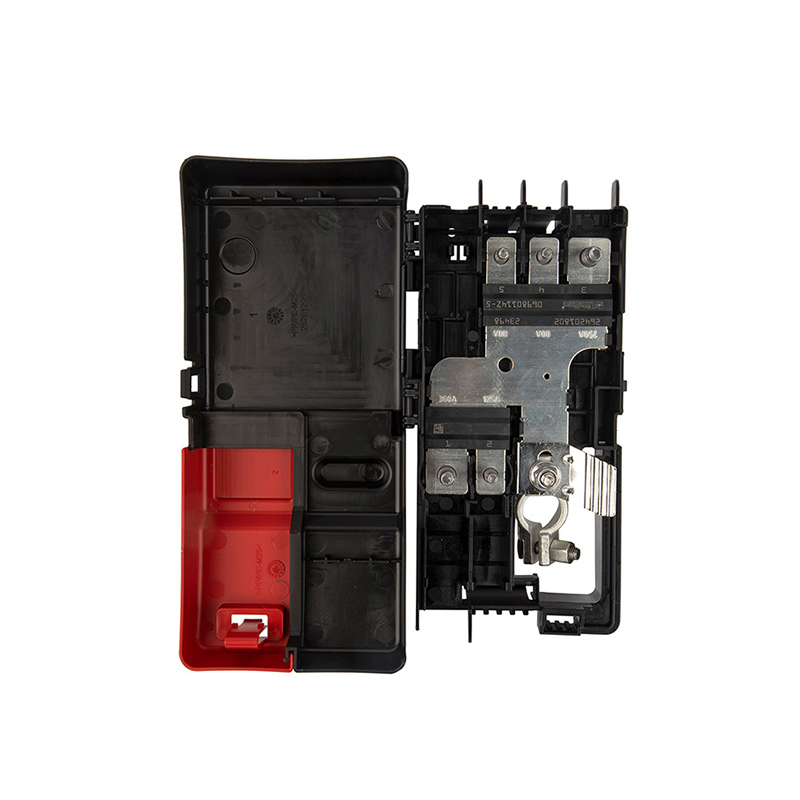

Low voltage BDU（2）.jpg

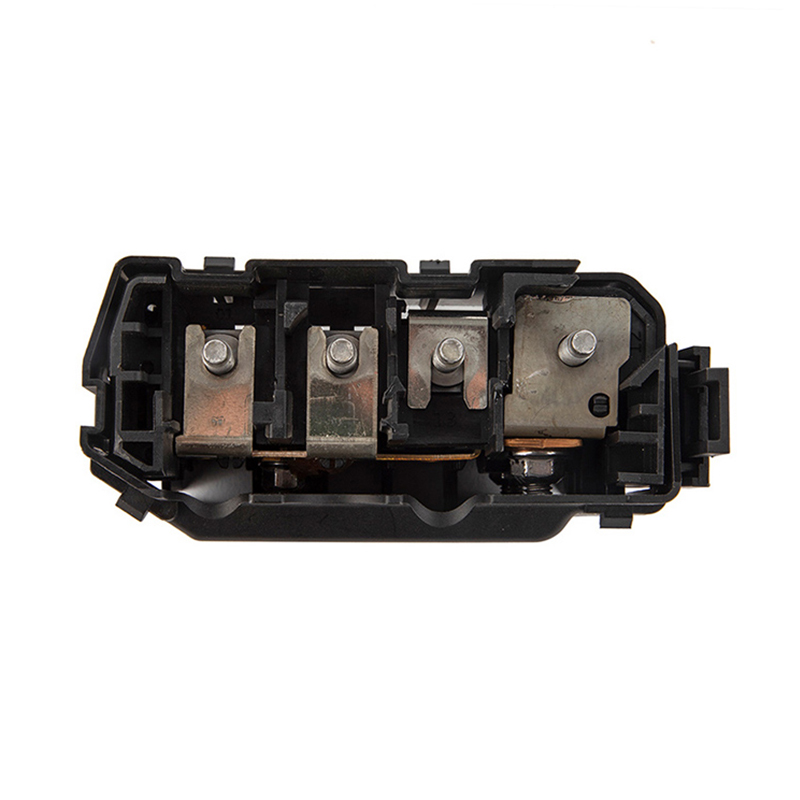

Low voltage BDU（3）.jpg

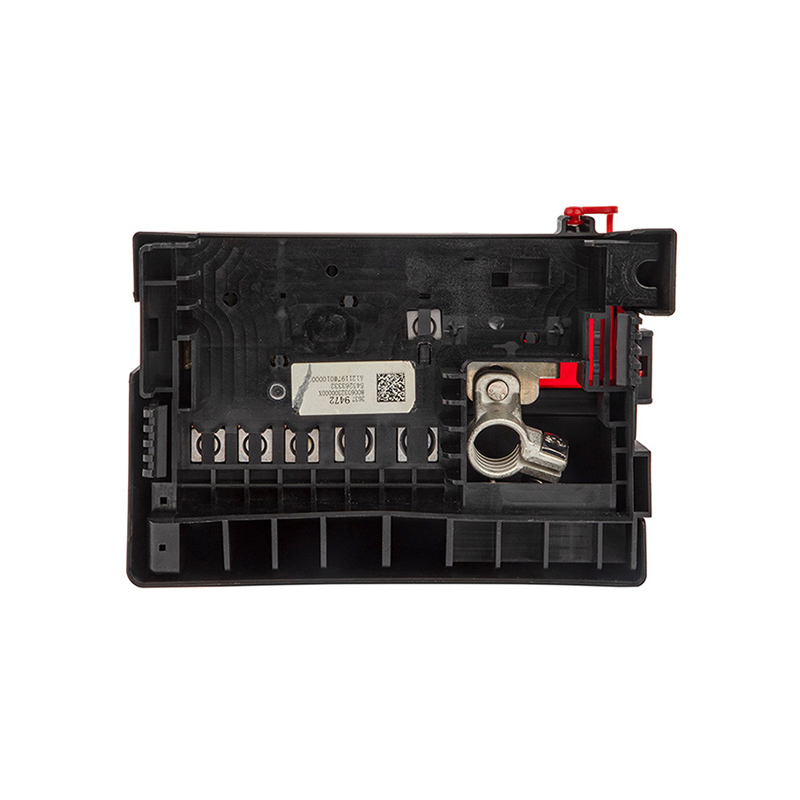

Low voltage BDU（4）.jpg

Low Voltage Power Distribution Unit (LV PDU)

In the field of electrical systems, low voltage battery distribution units (BDUs) are key components for efficient power management. These devices are designed to distribute and protect starters and other main circuits, ensuring smooth and reliable operation of electrical systems. One of the key features of the Low voltage BDU is its excellent operating temperature range: -40 to +105 degrees Celsius. Such a wide temperature tolerance ensures that the device can operate effectively in extreme environments and is suitable for a wide range of applications.

    Contact us
    Product Details

    Product Features

    •Provide power distribution and protection for main circuit like starter.

    •Application temperature: -40-+105℃.

    •Designed with individual fuses or master fuse.

    •Designed with error-proof structure for ring terminal installation.

    •Designed with master fuse for better product performance.

    •Designed with jumper start busbar.

    •Water splash protection.

    Product Overview

    Low voltage BDUs are equipped with either individual fuses or master fuses to enhance their protection capabilities. This design isolates faults, ensuring that a single circuit failure does not affect the entire system. By incorporating a master fuse design, BDUs can improve overall product performance and provide additional safety and reliability. The clever integration of fuses in the BDU design highlights the importance of power distribution system safety.



    The low voltage BDU’s ring terminal error-proof design makes installation easier. This innovative approach minimizes the risk of installation errors, avoiding costly downtime or equipment damage. The design ensures a safe and reliable connection, making it easy for technicians and engineers to complete simple installations.The jump start bus bar further enhances the BDU’s functionality, allowing it to easily connect and efficiently distribute power between multiple circuits.



    The low voltage BDU is designed to be splash proof and waterproof for wet environments that require extra care. This protective feature ensures that the BDU can withstand splashes and liquid spills, extending its service life and maintaining its performance integrity. The combination of waterproof performance and rugged construction makes the low voltage BDU an ideal choice for applications in a variety of industries, including automotive, marine and industrial machinery.
