Automotive Fuse Box and BDU Product Catalog PDF
2025-08-07
Hard wire Fuse Box
- Provide power distribution with busbar
- Application temperature:-40-+105℃
- Designed with TPA
- TPA design to ensure terminal position
- Centralised low cost storage design
- Feasible with Modular Design for platform application
- Water splash protection
- Meet international OEM Spec
- Experience for global programs
Low voltage BDU
- Provide power distribution and protection for main circuit like starter
- Application temperature: -40-+105℃
- Designed with individual fuses or master fuse
- Designed witherror-proof structure for ringterminal installation
- Designed with master fuse for better product performance
- Designed with jumper start busbar
- Water splash protection
- Provide power distribution and circuitprotection
- Application temperature: -40-+105℃
- Mating with harness connector
- Reflow process ensure good soldering quality
- Low cost PCB relay application to ensure compact package size
- High current PCB relay applicable
- Water splash protection
- Simplify wire harness and power distribution system
- Good assembly feasibility
- Meet international OEM Spec
- Experience in global programs
Smart Pcb Fuse Box
- Body control module function integration
- Application temperature：-40-+85℃ (Electronics component selection)
- IEC combined with body control functions: Door Lock, Light control, Locking control, Wiper control, Washing control
- CAN/LIN communication with Gateway function
- Low temperature rise ensure electronicscomponent performance
- Provides temperature protection, voltageprotection, current protection
- Provide OTA function
- Body control module function integration
- Application temperature：-40-+105℃ (Under hood application as well)
- MOFET for functions: Light control, Door Lock,Window Heater, lGNSignal
- CAN/LIN communication with circuit diagnostics
- Low temperature rise ensure electronicscomponent performance
- Provides temperature protection, voltageprotection, current protection
- Provide OTA function
HV BDU & HV BDU with Controlled
- Product provides high voltage main relays, high voltage fuses, pre-charge relay and resistor
- With have current sensor
- Designed with PCBA to monitor current, voltage and insulation
- Use V0 plastic material for better flammability performance
- Possible to add cooling system for better thermal management
- Meet international OEM spec
- Experience in global development
| Item | Key Parameter |
| Operation Voltage | DC194V~435V |
| Operation Temperature | -40℃~+85℃ |
| Operation Current | 244A~1267A |
EV AC Charger Inlet
- Include electronics lock, charging cable and HV connector and low voltage connector
- Application temperature：-40-+85℃
- Meet GB/T20234-2015
- Meet latest GB standard
- Electronics lock provide un-lock function for anyemergency
- Provides temperature monitoring
- High plug/un-plug life cycles
- Meet spec from both international OEM and GB

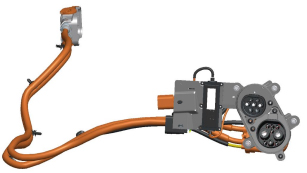

EV AC&DC Charger Inlet
- Include electronics lock, charging cable and HV connector and low voltage connector
- Application temperature：-40-+85℃
- Meet GB/T20234-2015
- Meet latest GB standard
- Electronics lock provide un-lock function for any emergency
- Provides temperature monitoring
- High-voltage fuse protection for AC circuits
- High plug/un-plug life cycles•Meet both international OEM and GB spec.
AC/DC EV Charger
- Includes charging control box, cable, charging gun and socket
- Application temperature：- 40-+85℃
- Charging status light
- Meet GB/T20234-2015 standard
- Meet latest GB standard
- Provides AC or DC power switch, relay status diagnostics, pilot issue detection and short circuit protection
- Water/dust protect meet IP6K6K, higher than GB requirement (IP54)
- Use V0 plastic material for better flammability performance
- User friendly and quality touch design
- High plug/unplug life cycles
- Meet spec from both international OEM and GB
